Laboratory Equipment / Laboratory Glassware
Lab Short Path Turnkey Distillation Kit – 2L
R 68,895.00
Lab1st Short Path Turnkey Distillation Kit – 2L
Catalogue price shown. Availability, delivery and the final total are confirmed by quotation. Online payments are not yet enabled.
SKU: CP_83853
Categories: Laboratory Equipment, Laboratory Glassware, Laboratory Scientific Instruments
Weight: 30 kg
Dimensions: 60 × 60 × 60 cm
Categories: Laboratory Equipment, Laboratory Glassware, Laboratory Scientific Instruments
Weight: 30 kg
Dimensions: 60 × 60 × 60 cm
Description & specifications

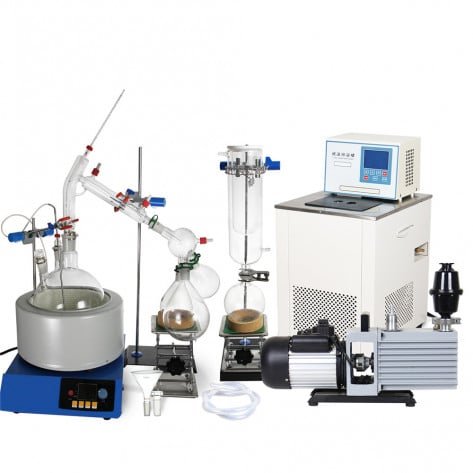

Lab Short Path Turnkey Distillation Kit – 2L
The entire kit includes a magnetic stirring heating mantle, glassware kit for short path distillation, cold trap, heater/chiller for precise cooling of condenser and necessary accessories (tubes, lab jack, etc).
- High quality and heavy duty Borosilicate 3.3 glass for durability
- Vacuum-jacketed distillation adapter, with 3 vigreux stages.
- 2L heating mantle with magnetic stirring function, available in 110V or 220V
- Detachable plastic 3/8”(10mm) hose barbs for maximized safety during operation
- Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
- GCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.
- Flexible choice of vacuum pumps and heater/chillers.
|
||
| Voltage | 110V 60Hz or 220V 50/60Hz, 1-phase | |
| Heating | Ambient to 300 degrees | |
| Max Speed | 2500 rpm | |
| Motor Power | 40 W | |
| Motor Type | Brushless DC Motor | |
| Controller | PID Control With Digital Temp Display | |
| External Thermocouple Type | PT100 | |
| Maximum Flask Capacity | 2L | |
| Top Opening Diameter | 6.5 Inches | |
| Depth | 4 Inches | |
| Dimensions | 11 x 16 x 8.5 Inches | |
| Safety | Thermocouple Failure Protection | |
| VACUUM PUMP: | ||
| Pumping Rate @ 50 Hz | 2.0L/s (4.2 CFM) | |
| Pumping Rate @ 60 Hz | 2.4L/s (5.0 CFM) | |
| Vacuum Stages | Dual-Stage | |
| Vacuum Level | 1.33 Pa (10 Microns) | |
| Working Temp | Minus 5 to 40 degrees | |
| Power | 370W | |
| Oil Capacity | 1.0L | |
| Dimensions | 514 x 168 x 282 mm | |
| Pump Weight | 20kg | |
| Vacuum Connection | KF25 or 10 mm Hose Barb | |
| Voltage | 110V 60Hz or 220V 50/60Hz, 1-phase | |
| CE Compliance | Yes | |
| CHILLING CIRCULATORS: | ||
| Temp Range | Minus 5 to 95 degrees | |
| Temp Acuuracy | Around +/- 0.1L | |
| Reservoir Volume | 6L | |
| Reservoir Dimensions | 250mm x 200mm x 150mm | |
| Pump Capacity | Max 4L/min | |
| Dimensions | 350mm x 400mm x 690mm | |
| Electricity | 220V, Single-Phase |
