Laboratory Equipment / Medical Equipment

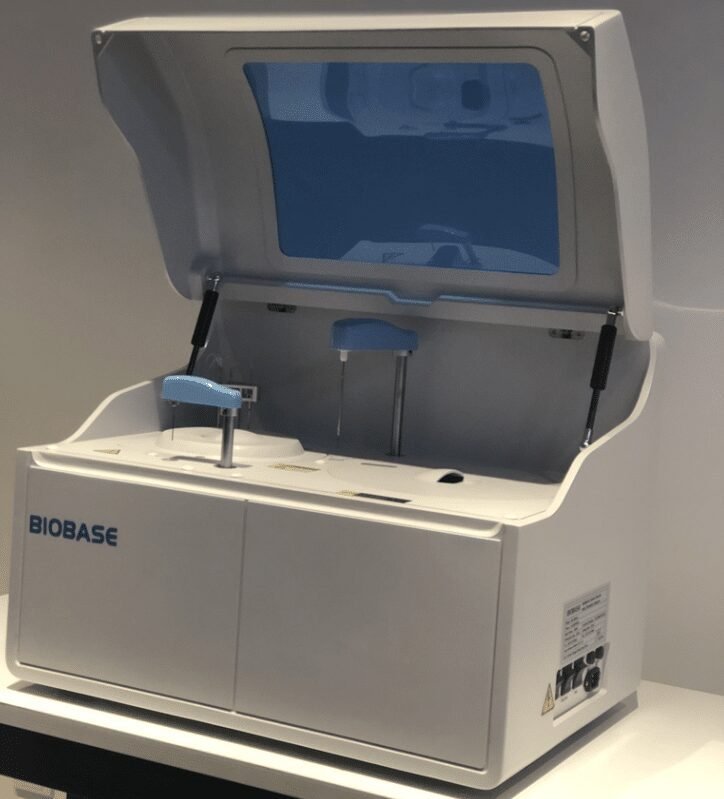

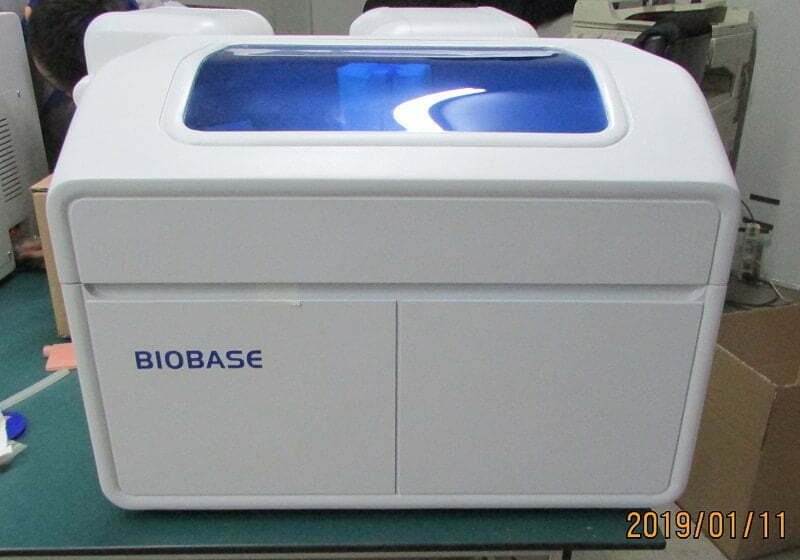

Clinical Blood Chemistry Analyzer
R 99,200.00
Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyzer
Catalogue price shown. Availability, delivery and the final total are confirmed by quotation. Online payments are not yet enabled.
SKU: CP_75955
Categories: Laboratory Equipment, Medical Equipment
Weight: 50 kg
Dimensions: 62.5 × 42.5 × 46.0 cm
Categories: Laboratory Equipment, Medical Equipment
Weight: 50 kg
Dimensions: 62.5 × 42.5 × 46.0 cm
Description & specifications
Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyzer
Lead Time: 4-6 Weeks
Technical Parameter:
|
Overall Performance |
Model |
BK-200mini |
|
Throughput |
200 Tests/hour |
|
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic) |
|
|
|
|
|
|
Sample & Reagent System |
Sample Positions |
37 sample positions |
|
Reagent Position |
28 reagent positions |
|
|
Sample Volume |
2~70μL
|
|
|
Reagent Volume |
20~350μL
|
|
|
Probe |
Liquid level sensor function, anti-collision function. |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
||
|
Reaction System |
Temperature Control |
37+0.1℃, real-time monitoring |
|
Cuvettes |
48 reusable cuvettes,optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
6V/10W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340,405,450,510,546,578,630,700nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration & QC |
Calibration |
Linear:K factor, 1-point ,2-point and multipoint liner Non-Linear: Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) |
|
|
Data Management |
Software |
Windows 7/8/10 , 32or 64bit |
|
LIS System |
Bi-direction,support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External,multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V+10%,50/60Hz, 110V+10%,60Hz, 300W |
|
Temperature |
10℃~30℃ |
|
|
Water Consumption |
Deionized water:3L/H |
|
|
Humidity |
30-80% |
|
| Size & Weight |
Size (W*D*H) |
625*425*460mm |
|
Net Weight |
36kg |
|
|
Package Size (W*D*H) |
720*535*740mm |
|
|
Gross Weight |
50kg |
